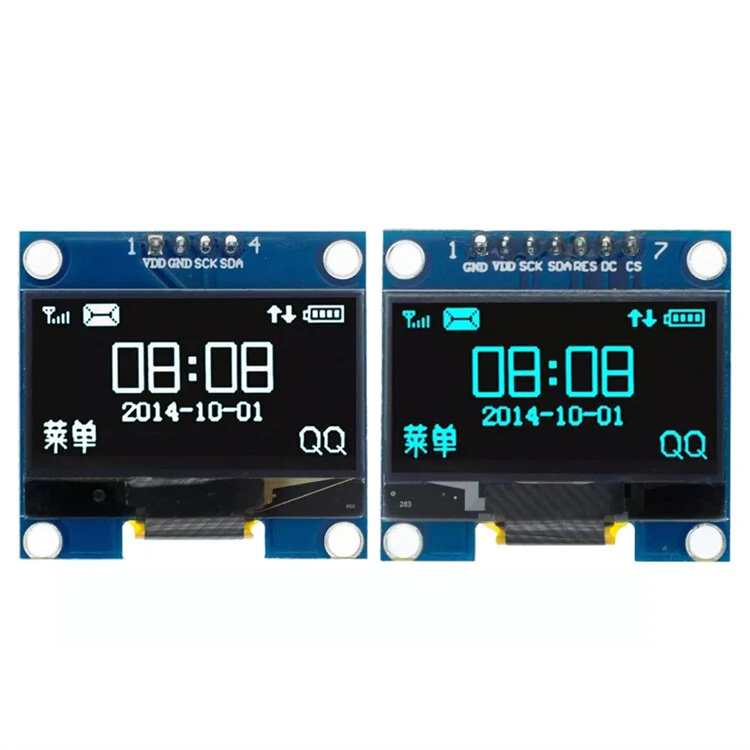

1.3 Inch OLED Display Module White/Blue 128X64 SPI/IIC I2C Communicate Color 4Pin/7Pin Screen Board

$6.29

Specifications 1 Resolution 128X642 Super wide viewing angle More than 160 ° maximum viewing angle display a screen 3 Ultra low power consumption Normal display 0 08W far below the TFT display 4 Wide supply range DC 3V 5V without any changes directly compatible with common 3 3V and 5V power supply system 5 Industrial grade Operating temperature range 30 degree 70 degree6 The ultra small size length 35 4MM W 33 5MM thickness 4 3MM7 Support for multiple operating modes 3 wire SPI 4 wire SPI IIC8 With chip select CS signal you can achieve multiple SPI or IIC device on the same bus work9 Compatible with 3 3V and 5V control chip I O level without any set directly compatible 10 OLED screen internal drive chip SH1106 Operation and SSD1306 same Package Include 1x Module Board
