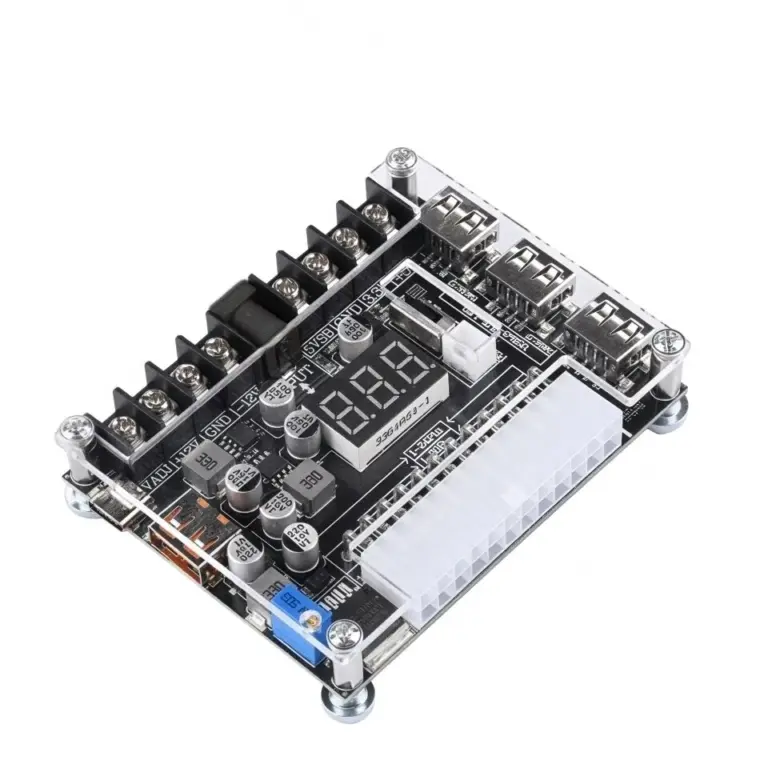

Specifications Terminal output voltage 12V 12V 5V 5VSB 3 3V3 USB outputs Output voltage maximum DC5V Output current 0 1A 2 1A 1 orange USB port fast charging output interface supports multiple protocols requires mobile phone and data cable to support fast charging Output voltage 5 12V automatically adjusted according to the protocol Output current 2A1 TYPE C interface output Support PD2 0 PD3 0 protocol Output voltage 5V 9VOutput current 2ADC female socket interface can be used as input and output interfaceCompatibility compatible with all 20 pin and 24 pin computer power suppliesApplication USB interface can power mobile phones tablets mobile power supplies flashlights bluetooth speakers smart bracelets small desk lamps aging electronic products etc Features 1 The module board is compatible with all 20Pin and 24Pin ATX computer power supplies 2 The toggle switch is used which makes the switch operation more convenient 3 The XH2 54 2P terminal is reserved suspended and two lines can be connected externally to control the ATX power supply on and off using the microcontroller IO port 5V or switch convenient for adding a shell for external installation 4 There are multiple interfaces on the board to facilitate the use of various lines After the module is turned on it outputs 5 groups of power 12V 12V 5V 5VSB and 3 3V 5 The module uses high current wiring terminals to solve the problem of loose wiring and poor wiring caused by
