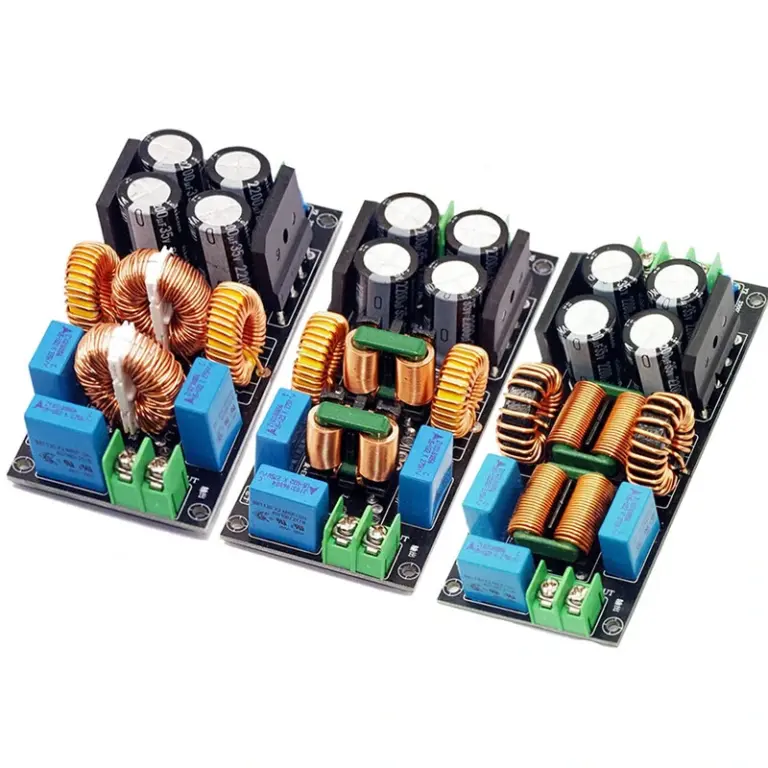

Parameters Name Audio power amplifier EMI Line filterInput voltage single phase AC 110 250VOutput voltage single phase AC 110 250VRated current of load 4A 20AInput port Three wire 7 62 socket inputOutput port 2 wire 7 62 socket outputMain parts selection X2 capacitor 0 22UF 3PCSY2 capacitor 275V 3300PF 2PCSDC elimination capacitor 35V 2200UF 4PCS diameter 16MMDC bridge reactor 50A 1000V 2PCSDifferential mode inductance 47UH 2PCSCommon mode inductance 2 PCSResistance 1 PCSSocket 7 62 2PIN 3PIN 1 PCS eachFeatures 1 Using high quality materials and ensuring product quality2 The first level is an RFI filter DC circuit which filters the DC components in the AC power supply through two 50A bridge stacks and four 35V2200UF capacitors suppressing the magnetic saturation or static current increase caused by the DC component transformer resulting in buzzing noise3 Differential mode filtering with two differential inductors performs differential mode filtering on the AC power supply to suppress mid to high frequency interference4 First level common mode filtering combining X2 capacitors and common mode inductors to form common mode filtering5 Two stage common mode filtering due to the use of two stage also known as two stage filtering the effect of filtering noise is better It can effectively suppress the problem of fast transient group pulse interference with a repetition frequency of several thousand hertz in certain user sitesPackage include 1x Line Filte
