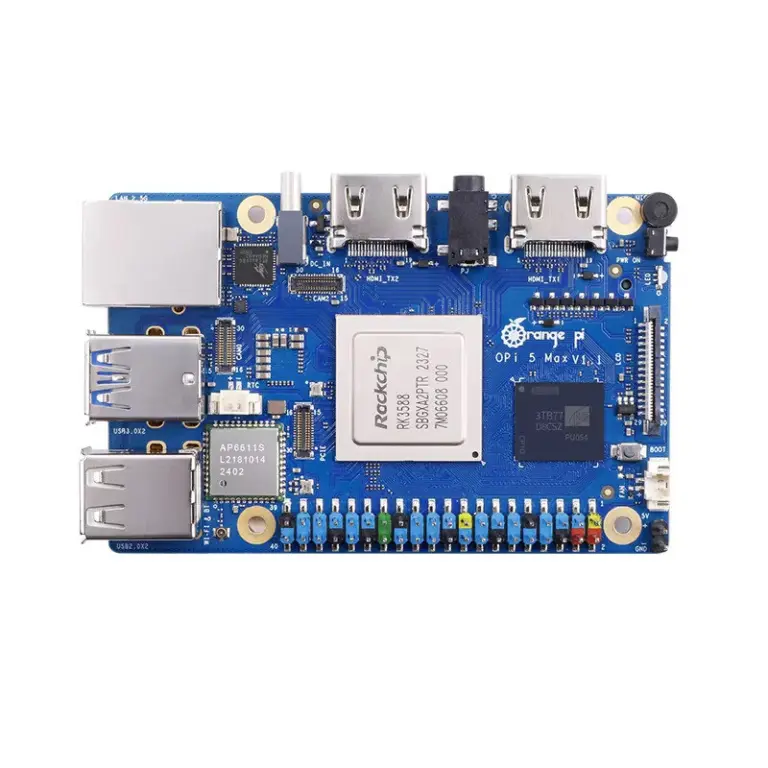

Feature Master ChipRockchip RK3588 8nm LP process CPU 8 core 64 bit processor 4 Cortex A76 and 4 Cortex A55 with independent NEON coprocessor Cortex A76 at 2 4GHz Cortex A55 at 1 8GHzGPU Integrated ARM Mali G610 Built in 3D GPU Fully compatible with OpenGL ES1 1 2 0 3 2 OpenCL2 2 and Vulkan 1 2 NPUEmbedded NPU supports INT4 INT8 INT16 FP16hybrid computing with up to 6TOPSPMURK806 1RAMLPDDR5 496PIN 16GBMemory QSPI Nor FLASH 16MB MicroSD card slot M 2 M KEYslot Support NVMe SSD PCIe 3 0 4Lane eMMC Flash Sockets default Onboard eMMC customizable This item not support Note Either eMMC socket or on board eMMC support 32GB 64GB 128GB 256GB optionalUSB2 USB3 0 2 USB2 0Video 2 HDMI2 1 up to 8k 60FPS 1 MIPI DSI TX 4 LaneCamera 2 MIPI CSI 4 Lane 1 MIPI D PHY RX 4 LaneAudio CODEC ES8388 1 Audio 3 5mm jack with mic 1 MIC In 1 HDMI2 1 eACEthernet1 PCIe 2 5G LAN RTL8125BG Wi Fi BT Module Onboard Wi Fi 6E BT 5 3 BLE module AP6611 Wi Fi interface SDIO3 0 BT interface UART PCMExpansion Port Dual row pin 2 54mm 40Pin Supports DC 5V and 3 3V power output Configurable UART PWM I2C SPI CAN GPIO and other functional interfaces Button1 BOOT key 1 On Off keyPower SourceSupports Type C power supply 5V 5ALEDRGB LED Side IlluminationFAN5V 2PIN 1 25mm socketRTC3V 2PIN 1 25mm socketDebuggingDebug serial UART included in 40PIN expansion portSupported OSOrangepi OS Droid Orangepi OS Arch Ubuntu Debian Android12Package includes 1 x Ora
