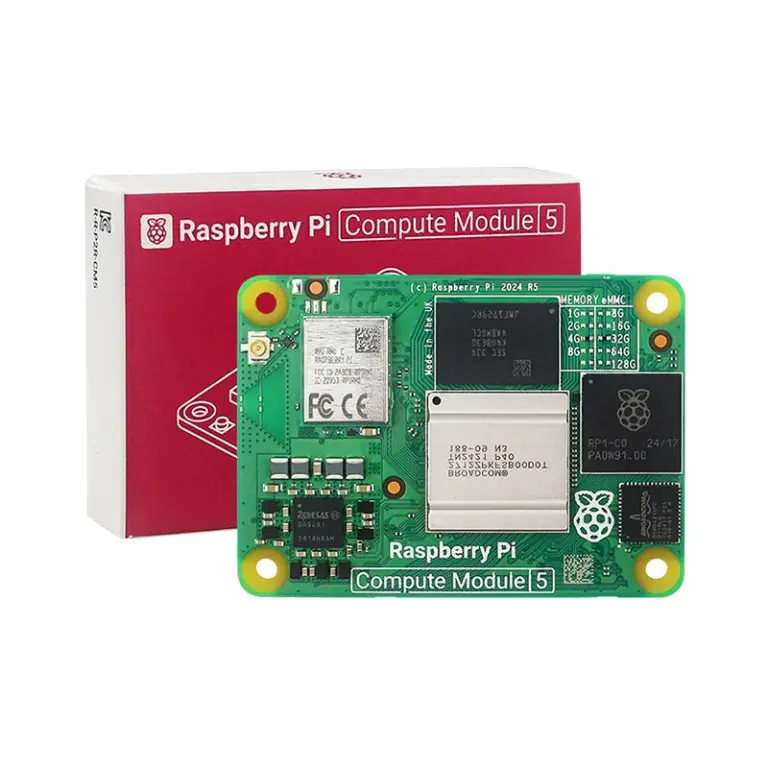

1111MicrosoftInternetExplorer402DocumentNotSpecified7 8 磅Normal0Documents Raspberry Pi Compute Module 5 product briefRaspberry Pi Compute Module 5 datasheetRaspberry Pi Compute Module 5 design filesSpecifications SpecificationDetailsProcessorBroadcom BCM2712 quad core 64 bit Arm Cortex A76 Armv8 SoC 2 4GHzMemory2GB 4GB LPDDR4 Optional Storage16GB eMMC 32GBeMMC Optional Connectivity● 2 4 GHz 5 0 GHz IEEE 802 11 b g n ac wireless● Bluetooth 5 0 BLE● On board electronic switch to select between PCB trace or external antennaOnboard Gigabit Ethernet PHY supporting IEEE15881 USB 2 0 port high speed 2 USB 3 0 ports supporting simultaneous 5Gbps operation1 PCIe x1 root complex Gen 2 5Gbps Up to 30 GPIO supporting either 1 8V or 3 3V signalling and peripheral options ● Up to 5 UART● Up to 5 I2C● Up to 5 SPI● 1 SDIO interface● 1 DPI parallel RGB display ● 1 I2S● Up to 4 PWM channels● Up to 3 GPCLK outputsVideo2 HDMI 2 0 ports supports up to 4Kp60 on both ports simultaneously 2 4 lane MIPI ports supporting both DSI port display and CSI 2 camera port Multimedia4Kp60 HEVC decoder OpenGL ES 3 1 graphics Vulkan 1 21 SDIO 2 0 CM5 Lite Input powerSingle 5V PSU input supports USB PD for up to 5A 5VOperating temperature20°C to 85°CMTBF Ground Benign143 000 hours 168 000 hours CM5 Lite Dimensions55 mm 40 mm x 4 7 mm CM5002016 Wireless NoRAM 2GBeMMC 16GB CM5102016 Wireless YesRAM 2GBeMMC 16GB CM5104032 Wireless YesRAM 4GBeMMC 32GB Fea
