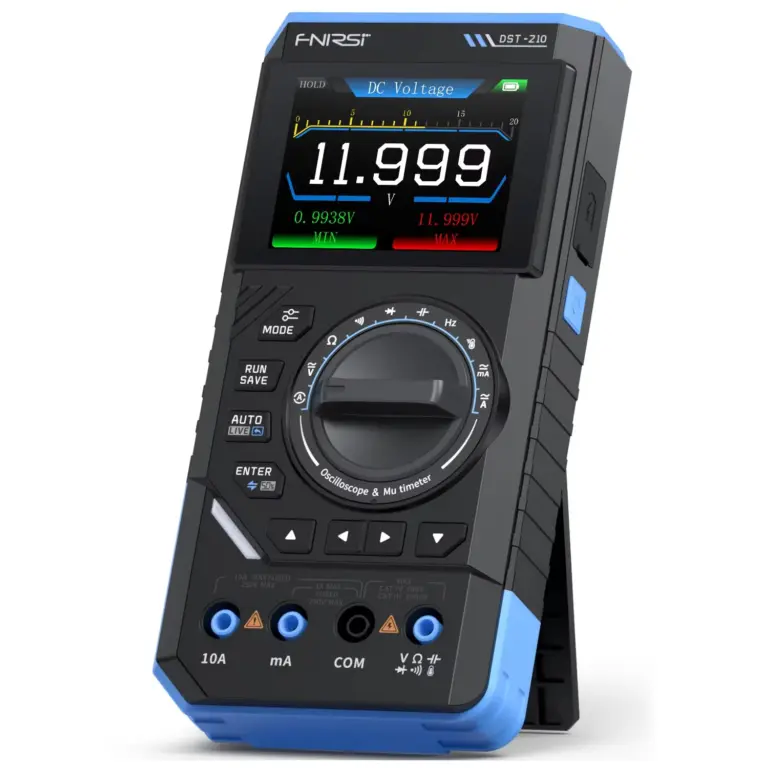

Specifications DST 210 19999 Counts True RMSAnti burn Bandwidth 10MHz Sampling rate 48MSa s Frequency 0 50KHz Waveform output 13 DST 201 19999 Counts True RMSAnti burn Bandwidth 1MHz Sampling rate 5MSa s Frequency 0 10KHz Waveform output 13 Features 1 High precision oscilloscope function FNIRSI DST 201 provides a sampling rate of 5MSa s and an analog bandwidth of 1MHz DST 210 provides a sampling rate of 48MSa s and an analog bandwidth of 10MHz ensuring waveform analysis It is equipped with voltage protection up to ±400V suitable for a wide range of applications 2 Multi function signal generator function Supports 13 waveforms with a frequency range of 0 10KHz and an adjustable output voltage of 3V The frequency amplitude and duty cycle can all be fine tuned to meet various testing needs 3 Comprehensive multimeter function FNIRSI DST 201 210 includes a variety of functions such as recording mode automatic measurement AC DC voltage AC DC current resistance capacitance diode continuity frequency temperature data hold and LIVE zero live line providing powerful functions for various measurements 4 Overload protection and portable design The device is equipped with overload protection and low battery warning for added safety Its compact and lightweight design as well as a 2 8 inch TFT color display ensures clear and intuitive visual effects Built in 3000mAh rechargeable battery supports up to 15 hours of standby time perfect for mobile
