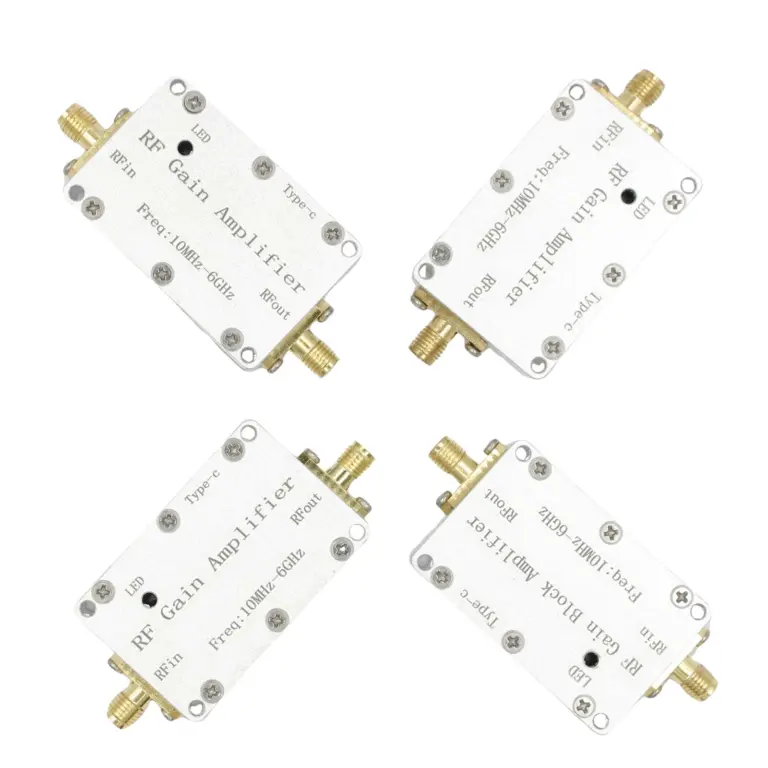

Specifications Power Supply TYPE C lineModule Frequency Range 10MHz 6GHzNoise Figure NF 4 5dB refer to the measured curve for specific frequencies Gain 10dB 20dB 30dB 40dB refer to the measured curve for different frequencies Size 4 5 x 3 x 1 4 cm excluding protruding SMA Weight 66g including host and TYPE C cable Current Consumption 100mAP1dB 18dBm 2GHzOutput Interface SMA female input output impedance 50 ohms Features Wide Frequency Range Covers a range of 10MHz to 6GHz suitable for various applications like GPS FM radio and radar reception Multiple Gain Options Available in 10dB 20dB 30dB and 40dB variants easily adaptable to your specific needs Low Noise Figure Maintain signal integrity with a noise figure of 4 5dB ensuring high performance Compact and Lightweight Design Small footprint of 4 5 x 3 x 1 4 cm and light weight of 66g make it easy to integrate Reliable Power Supply Operates with a Type C power input and consumes less than 100mA of current Package Included Type A 1 x 10db RF Gain Amplifier1 x TYPE C Cable Type B 1 x 20db RF Gain Amplifier1 x TYPE C Cable Type C 1 x 30db RF Gain Amplifier1 x TYPE C Cable Type D 1 x 40db RF Gain Amplifier1 x TYPE C Cablemso bidi font family Times New Roman font size 10 5000pt mso font kerning 1 0000pt mso bidi font family Times New Roman font size 10 5000pt mso font kerning 1 0000pt
